SQL CHALLENGE: Calculating the number of remaining inventories

We want to generate an inventory age report which would show the distribution of remaining inventory across the length of time the inventory has been sitting at the warehouse. We are trying to classify the inventory on hand across the below 4 buckets to denote the time the inventory has been lying the warehouse. (Full code: my github)

0-90 days old

91-180 days old

181-270 days old

271–365 days old

For example, the warehouse received 100 units yesterday and shipped 30 units today, then there are 70 units which are a day old.

The warehouses use FIFO (first in first out) approach to manage inventory, i.e., the inventory that comes first will be sent out first.

WAREHOUSE Table:

RESULT Table:

Your output must look like this:

Solution

The items that come in first will go out first. Imagine all items listed in the order of their arrival dates. Now, each time an item is sold (OutBound), we cross off one of the (InBound) items. To implement this logic, we can expand our table to include a column of 1's, with one 1 for each InBound item. We will also add another column with one 1 for each OutBound item. By putting these two columns together and subtracting the outbound values from the InBound values, the 1's in the InBound column that are not subtracted to zero represent the remaining items.

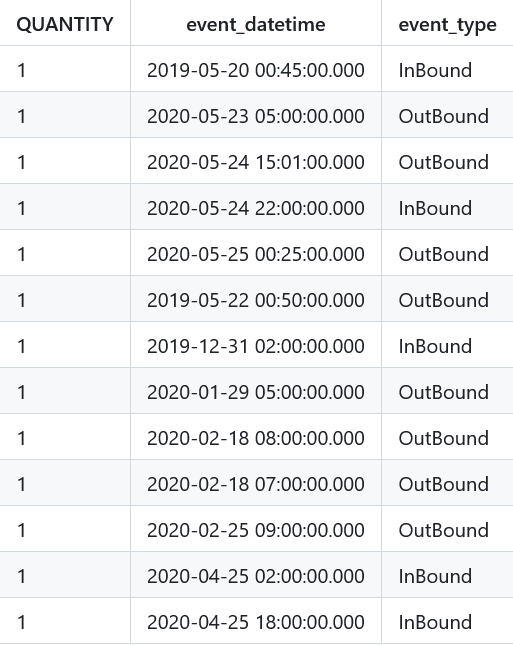

1. The CTE starts by listing each InBound and OutBound event types with an initial quantity of 1.

WITH CTE AS (
    SELECT 1 AS QUANTITY, event_datetime, event_type
    FROM WAREHOUSE

2. The recursive part of the CTE expands this to multiple rows, one for each unit up to the total quantity (OnHandQuantityDelta).

--ADD ROWS UNTIL THE THRESHOLD (OnHandQuantityDelta #) IS MET
WITH CTE AS (
    SELECT 1 AS QUANTITY, event_datetime, event_type --BASE
    FROM WAREHOUSE
    UNION ALL --ITERATION
    SELECT CTE.QUANTITY + 1, CTE.event_datetime, CTE.event_type
    FROM CTE
    JOIN WAREHOUSE W
        ON CTE.event_datetime = W.event_datetime
       AND CTE.QUANTITY + 1 <= W.OnHandQuantityDelta
),

3. Each row (representing a single unit) is ranked by its event_datetime within its event_type.

--ADD 1'S COLUMN AND ROW NUMBER
RANKED AS (
    SELECT 1 AS QUANTITY, event_datetime, event_type,
           ROW_NUMBER() OVER (PARTITION BY event_type ORDER BY event_datetime) AS rank
    FROM CTE
),

4. Each row of the InBound unit is joined to its corresponding OutBound unit where they have equal row numbers.

REMAINED AS (
    SELECT R1.QUANTITY AS In_QUANTITY, R1.event_type AS In_event_type, R1.rank AS In_rank,
           R2.QUANTITY AS Out_QUANTITY, R2.event_type AS Out_event_type, R2.rank AS Out_rank
    FROM RANKED R1
    LEFT JOIN RANKED R2
        ON R1.rank = R2.rank
       AND R1.event_type != R2.event_type
	   WHERE R1.event_type = 'Inbound'

5. We then substract these two columns, and calculate remaining items.

--CALCULATE REMAINED ITEMS
REMAINED AS (
    SELECT R1.event_datetime,
           SUM(R1.QUANTITY - ISNULL(R2.QUANTITY, 0)) AS remained
    FROM RANKED R1
    LEFT JOIN RANKED R2
        ON R1.rank = R2.rank
       AND R1.event_type != R2.event_type
    WHERE R1.event_type = 'Inbound'
    GROUP BY R1.event_datetime
),

6. Now, we assign each remained row to an event_period based on the age of the event_datetime, and relative to the latest event_datetime.

--CRETAE THE 4 PERIOD INTERVALS
PERIODS AS (
    SELECT remained,
           CASE
               WHEN event_datetime < DATEADD(DAY, -365, latest) THEN 0
               WHEN event_datetime < DATEADD(DAY, -270, latest)
                    AND event_datetime >= DATEADD(DAY, -365, latest) THEN 1
               WHEN event_datetime < DATEADD(DAY, -180, latest)
                    AND event_datetime >= DATEADD(DAY, -270, latest) THEN 2
               WHEN event_datetime < DATEADD(DAY, -90, latest)
                    AND event_datetime >= DATEADD(DAY, -180, latest) THEN 3
               ELSE 4
           END AS event_period
    FROM REMAINED
    CROSS JOIN (
        SELECT MAX(event_datetime) AS latest
        FROM WAREHOUSE
    ) MAX_DAY
),

7. Lastly, we aggregate the remained column, and add columns for each age period.

--ADD THE RIGHT COLUMNS FOR OUTPUT
RESULT AS (
    SELECT SUM(remained) AS total_remained, event_period
    FROM PERIODS
    GROUP BY event_period
)
--REDUCE THE RESULT TABLE TO ONE ROW
SELECT MAX(CASE WHEN event_period = 4 THEN total_remained ELSE 0 END) AS '0-90 days old',
       MAX(CASE WHEN event_period = 3 THEN total_remained ELSE 0 END) AS '91-180 days old',
       MAX(CASE WHEN event_period = 2 THEN total_remained ELSE 0 END) AS '181-270 days old',
       MAX(CASE WHEN event_period = 1 THEN total_remained ELSE 0 END) AS '271-365 days old'
FROM RESULT
OPTION (MAXRECURSION 0); --INFINITE LOOP CTE
